Open Type Robot – Small Size
Open Type Robot – Small Size

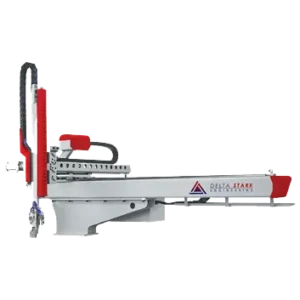

Three axis AC servo traverse robot is applicable to horizontal injection molding machine range from 420T for product take out. Vertical arm is telescopic type, traverse axis (Z), crosswise axis (X) and vertical (Y) driven by AC servo motor. Full servo robot advantages: high precision, easy operating, smooth running, faster speed, stronger structure and longer working life. It is mainly used for long size product, like PET preform etc.
Description
- Features
- Remarks
- Dimensions
- Parameters
100 sets of mold memory function
18 groups of standard program
80 groups of user teaching program
Open teaching mode, user can flexibly teach special action program to meet the needs of various special products.
- I Single stage arm
- W Telescropic type arm
- S Single arm (Product arm)
- D Double arms (Product arm+Runner arm)
- S3 Three axis servo driven
- S5 Five axis servo driven
- N Open Type
| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| THG850WSS3 | 2040 | 1140 | 1330 | 1350 | 240 | 500 | 270 | 170 |
| THG950WSS3 | 2040 | 1140 | 1390 | 1350 | 240 | 500 | 270 | 220 |
| THG1100WSS3 | 2220 | 1260 | 1450 | 1550 | 240 | 620 | 270 | 170 |
| THN1300WSS3 | 2520 | 1380 | 1510 | 1850 | 240 | 740 | 270 | 170 |
| Model | Unit | THN1300WSS3 | THN1300WSS3 | THN1300WSS3 | THN1300WSS3 |
|---|---|---|---|---|---|
| Applied IMM | Ton | 160-260 | 260-320 | 320-420 | 400-500 |
| Traverse stroke | mm | 1350 | 1350 | 1550 | 1850 |
| Crosswise stroke | mm | 460 | 520 | 640 | 760 |
| Vertical stroke | mm | 850 | 950 | 1100 | 1300 |
| Max load | kg | 5 | 5 | 5 | 7 |
| Fetch time | sec | 1.2 | 1.5 | 2 | 2.2 |
| Cycle time | sec | 7 | 8 | 9 | 10 |
| Robot weight | kg | 160 | 170 | 230 | 280 |
