Traverse Beam Type Robot
Traverse Beam Type Robot

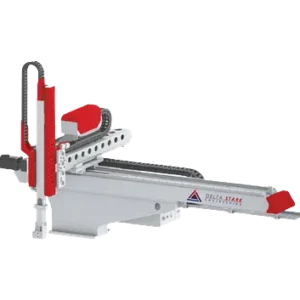

Five axis AC servo traverse beam robot is applicable to horizontal injection molding machine range from 100T to 450T for product and sprue take out. Vertical arm is telescopic type, traverse axis (Z), crosswise axis (X) and vertical axis (Y) driven by AC servo motor. Traverse beam robot advantages: save 20%-30% factory space, reduce workers, promote workshop management. It is mainly used for 3C product, home appliances product, etc
Description
- Features
- Remarks
- Dimensions
- Parameters
100 sets of mold memory function
18 groups of standard program
80 groups of user teaching program
Open teaching mode, user can flexibly teach special action program to meet the needs of various special products.
- I Single stage arm
- W Telescropic type arm
- S Single arm (Product arm)
- D Double arms (Product arm+Runner arm)
- S3 Three axis servo driven
- S5 Five axis servo driven
| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| THZ850WDS5 | 3500-6000 | - | 1360 | 990 | - | - | 200 | 220 |
| THZ9S0WDS5 | 3500-6000 | - | 1420 | 1050 | - | - | 200 | 220 |
| THZ1100WDS5 | 3500-6000 | - | 1480 | 1050 | - | - | 200 | 220 |
| THZ1100WDS5 | 3500-6000 | - | 1600 | 1110 | - | - | 200 | 220 |
| Model | Unit | THZ850WDS5 | THZ950WDS5 | THZ1100WDS5 | THZ1300WDS5 |
|---|---|---|---|---|---|
| Applied IMM | Ton | 160-260 | 260-320 | 320-420 | 400-500 |
| Traverse stroke | mm | (3000-4200) | (3000-4500) | (3500-5000) | (4500-5500) |
| Crosswise stroke | mm | 350:150 | 400:200 | 450:200 | 450:200 |
| Vertical stroke | mm | 850 | 950 | 1100 | 1300 |
| Max load | kg | 5 | 5 | 5 | 7 |
| Fetch time | sec | 1.2 | 1.5 | 2 | 2.2 |
| Cycle time | sec | 8 | 9 | 11 | 3 |
| Robot weight | kg | 260 | 300 | 350 | 420 |
